The World's Smallest CCD Number Plate Reversing Camera
View Large
Product Name : The World's Smallest CCD Number Plate Reversing Camera
Product Origin : China
Product Category : CCTV CMOS cameras
More Products : Click here!
Contact Details : Topccd Industrial Co.,Ltd.
Product Code : TOP-311M-M
Product Details

 Feature:


1.)Flush mount rearview Camera

2.)Aluminum case and waterproof for outdoor use

3.)Embedded type,Compact size for more convenient installation

4.)Waterproof IP67~68,anti-fog,anti-shock

5.)Lense Angle 170 degree horizontal and 90 degree vertical

6.)Drill bit for installation included

7.)Other functions:Parking line,Mirror image and original image(optional)



Specification:

Model:TOP-313M-M

1.)Image Device:1/4inch CMOS PC-1030

2.)TV System:NTSC/PAL

3.)Effective Pixels:NTSC:510(H)*496(V),PAL:628(H)*586(V)

4.)Sync.System:Internal

5.)Horizontal Definition:420 TV Lines

6.)Minimum Illumination:0.2Lux/F1.2

7.)Video Output:1.0Vp-p 75 ohm

8.)Gamma Consumption:0.45

9.)AGC:ON

10.)S/N Ratio:Better than 48dB

11.)White Balance:Auto

12.)Electronic Shutter:1/50Sec-12.5Sec (PAL)/1/60Sec-12Sec (NTSC)

13.)BLC:Auto

14)Waterproof:IP67-IP68

15.)Current Consumption:Max.65mA

16.)Power Supply:DC12V

17.)Operating temperature:from -20deg to +75deg (relative humidity 95% max)

18.)Storage temperature:from -40deg to +85deg (relative humidity 95% max)

19.)Lens:1.7 mm

20.)Lens Angle:170deg(diagonal)

21.)Weight:0.2kg

22.)Dimensions:18.5mm*L30mm

23.)Other functions:Parking line


Product Attachment

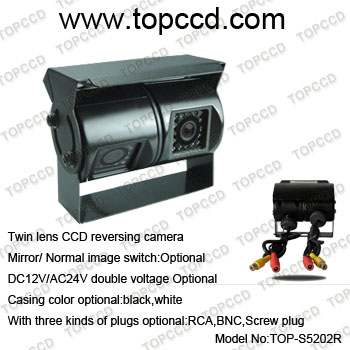

File Name : TOP-S5202R.jpg
File Size : 32.17KB     File Type : image/jpeg
